Digital Forest Fire Prevention Control System
Digital Forest Fire Prevention Control System
Yoseen infrared is a company focusing on the R & D, production and sales of temperature - measuring infrared thermal camera. Our thermal cameras are widely used in human body temperature measurement, metallurgy, power system, security and other fields.
System introduction

Digital Forest Fire Prevention Control System

Forest fires are the most dangerous enemy of forests and can bring devastating consequences. Yoseen Forest Fire Digital Monitoring System includes thermal and visual cameras and high-precision cradle head, realizing video automatic forest monitoring, accurate identification and location of fire point and other functions. With round-the-clock continuous scan, it can realize the "early detection, early action, early extinguish" strategic thinking and intelligent management of fire prevention.




Advantages

①Clearer images and more accurate temp, high temp automatically tracked, fire point alarmed and positioned with visible light camera, intelligent forest fire monitoring realized.

②With 24h round-the-clock monitoring, when fire found, it can alarm and record video, warn the personnel to take measures, which is unattended, and can avoid fire report failure due to the blind zone of manual monitoring, thus the fire hazards can be detected timely and nipped in the bud.

③Interface-friendly, simple software, with clear structure, and easy operation, including SDK with secondary development supported.





Digital Forest Fire Prevention Control System

①Clearer images and more accurate temp, high temp automatically tracked, fire point alarmed and positioned with visible light camera, intelligent forest fire monitoring realized.

②With 24h round-the-clock monitoring, when fire found, it can alarm and record video, warn the personnel to take measures, which is unattended, and can avoid fire report failure due to the blind zone of manual monitoring, thus the fire hazards can be detected timely and nipped in the bud.

③Interface-friendly, simple software, with clear structure, and easy operation, including SDK with secondary development supported.

technical parameter

Compared with the common network video monitoring system, the dual spectrum detection forest fire intelligent early warning system is a more intelligent, higher-end and more accurate fire monitoring system, which can realize unattended, use software to automatically analyze and judge the video image, timely find out the abnormal smoke and fire signs in the monitoring area and alarm, so as to achieve the purpose of early warning.

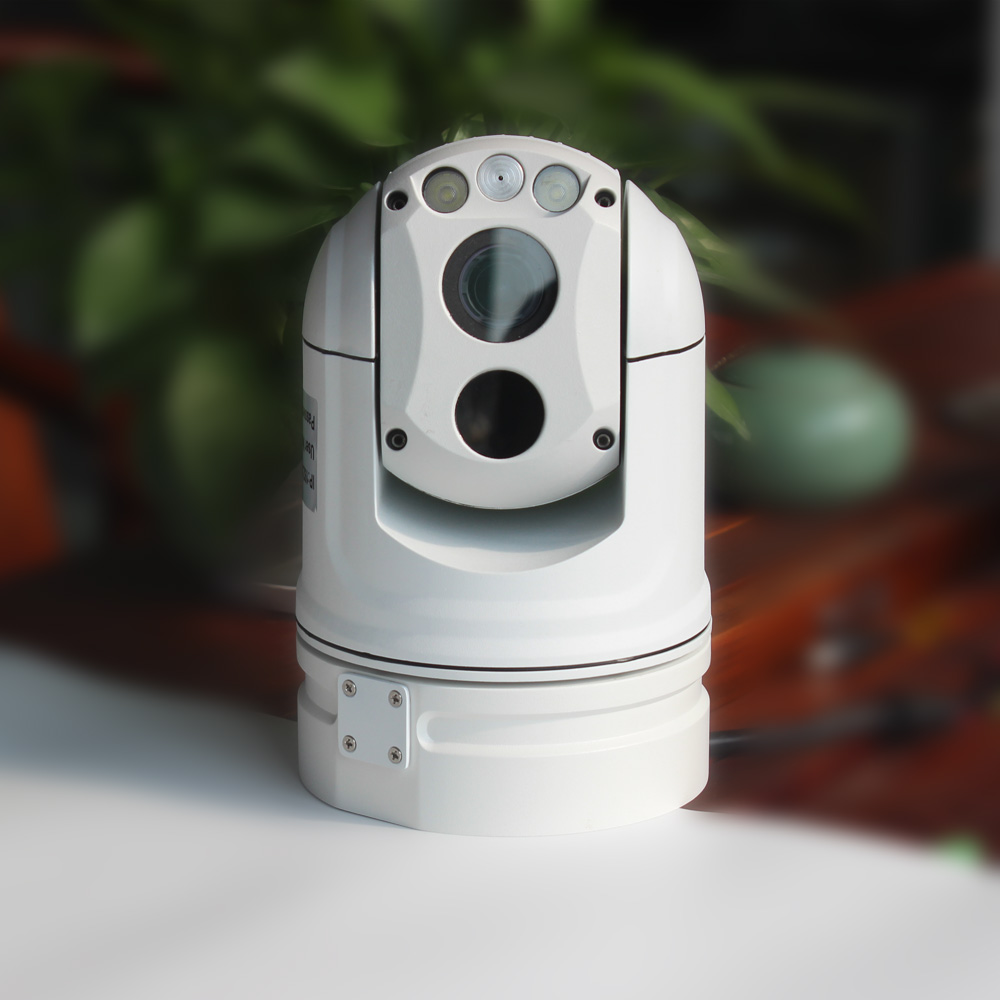

The dual spectrum infrared ball thermal camera produced by Yoseen Infrared is widely used in the forest only early warning system. The intelligent early warning system of dual spectrum forest fire detection can also view the real-time image of the scene, and direct command and dispatch the fire according to the intuitive picture. At present, the world's forest area is as high as 4 billion hectares, of which China's forest area is 175 million hectares. In recent years, infrared thermal imaging monitoring and visible light image monitoring have some application in forest fire prevention, but due to the principle of self imaging and monitoring, a single monitoring mode is easy to produce false alarm.

The intelligent early-warning system of forest fire prevention based on double spectrum detection adopts the method of double spectrum detection, which combines the advanced infrared thermal imager acquisition and visible light image detection with intelligent analysis algorithm, and forms a digital and networked intelligent forest fire prevention command system with network transmission system and display system, which maximizes their advantages and can effectively and accurately locate The location of the first mock exam fire disaster has made up for the shortage of traditional fire alarm system and single mode, and achieved the effect of intelligent early warning of forest fire prevention.



Focus Mode

Electric/manual, electric lens supports autofocus

Image enhancement

Adaptive drawing, manual enhancement, electronic zoom

Color palette

White hot, black hot, iron red, red saturated, user-defined and others



Video output

100M Ethernet +PAL analog video, with temp measurement area display

Visible light parameter

Image resolution

1920*1080

Resolution

2 million pixels

Sensor type

1/2.8’’ Progressive Scan CMOS

Camera lens

30x optical zoom, f=4.3-129mm(customizable), 4x optical zoom, f=2.8-12mm(customizable)

Holder performance

Control

Autonomous platform software

Communication interface

Network output

Preset positions

256 preset positions, with precision <0.05°

Cruise scanning

6 pieces, each can set 16 preset positions, preset time adjustable

Vertical angle

-15°(look down) ~ +90°(look up)

Horizontal angle

360°continuous rotation, without monitoring blind area

LED

Support double LED

Network function processing

Network protocol

TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, ONVIF

Business functions

                   WEB configuration, OSD, real-time video transmission, back-end storage and playback, JPG capture, video & temp stream recording, unified remote monitoring software, provide SDK development kit (including JAVA)
